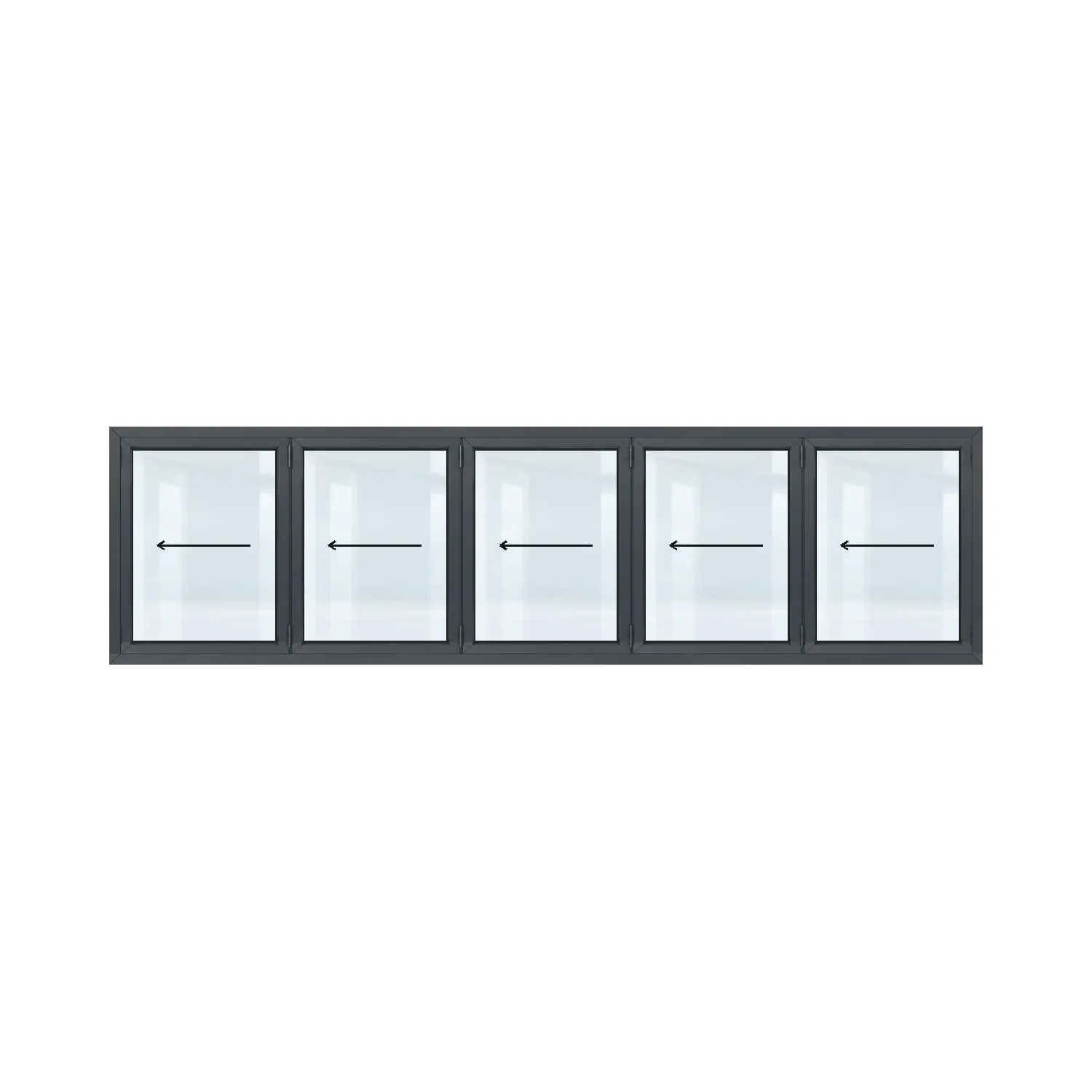

5 Panel Aluminium Folding Window – 3300 x 900 mm

5 Panel Aluminium Folding Window – 3300 x 900 mm

This 5 panel Vista Fold aluminium folding window measures 3300 mm wide by 900 mm high. The panels fold and stack towards the outside, with the stacking direction selected when ordering.

Window specifications and what is included

• Overall size: 3300 mm wide x 900 mm high.
• 5 sliding folding panels, with stacking direction selected when ordering.
• Frame system: Vista Fold.
• Frame colours: Black, White, Bronze or Charcoal.
• Glass or infill: Clear, Low-E or Clear SIG glazing, or Y Louvre aluminium inserts.
• Latch hook lock included. A cylinder is an additional-cost accessory and is not included in the window price.
• Colour-coded lever handle supplied; Charcoal frames have a black handle.

Choose glass or Y Louvre infill

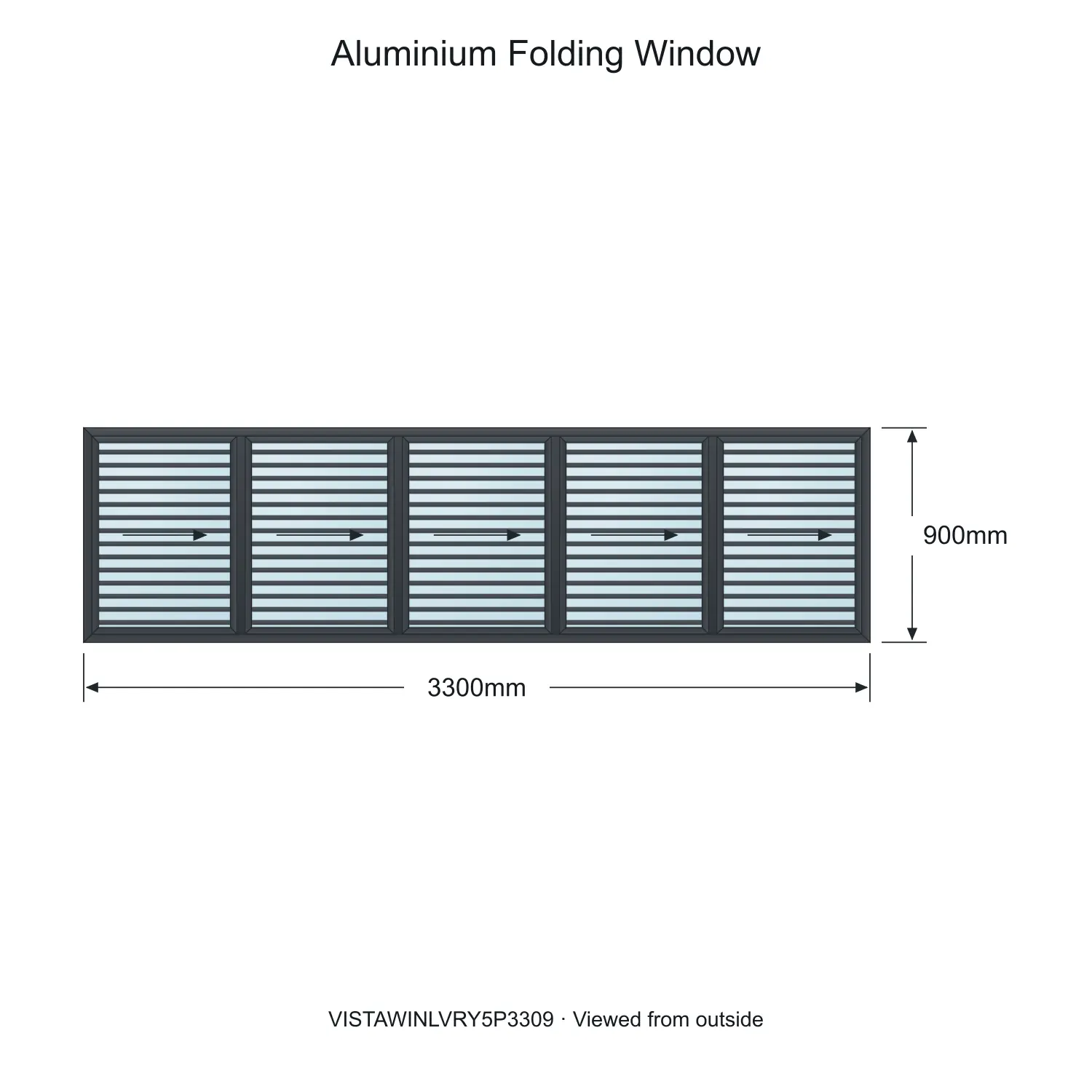

Clear and Low-E are glass choices, while Clear SIG is the brochure’s sealed insulating glass option. Y Louvre aluminium inserts replace the glass in that configuration. The selected infill uses its own supplier price and illustration.

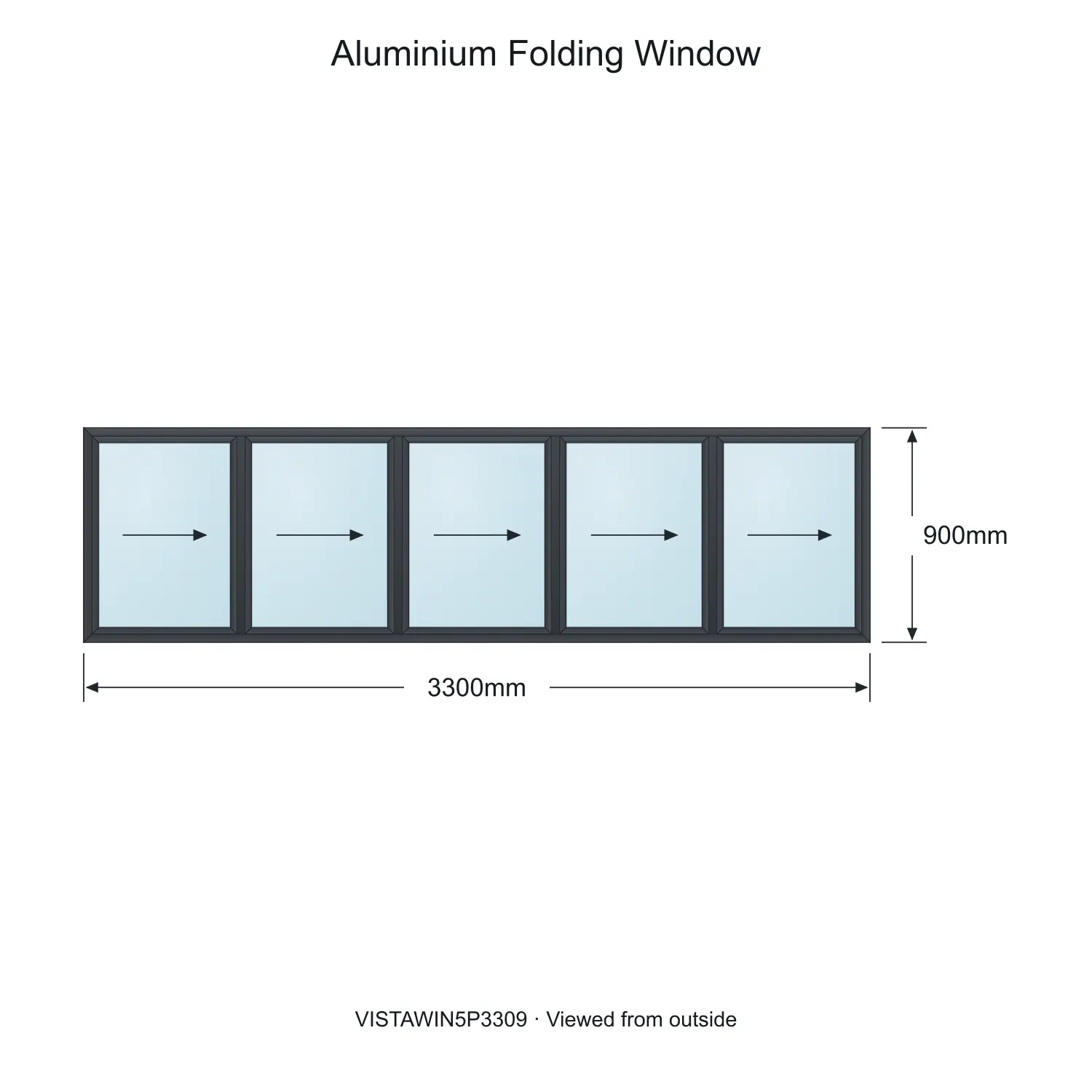

All displayed prices include 15% VAT. Select the frame colour and glazing combination that suits your project. Sizes are shown as width x height, and the measurements illustration shows the window viewed from outside.

Panels stack towards the outside. Specify the stacking direction when ordering; these windows are not reversible.

The brochure specifies supply unglazed for glass configurations of Vista windows. Glazing and assembly must follow the supplier installation requirements. The Y Louvre configuration uses aluminium inserts in place of glass.

Follow the supplier installation guide for the selected Vista system.

The supplier brochure states that products weighing more than 80 kg are supplied unglazed. Confirm glazing and handling arrangements with our team for heavy units.

Compare more sizes and designs in our aluminium folding windows range, or explore the complete aluminium windows collection.

Aluminiumwindows.co.za is part of K Parker Joinery, manufacturing doors and windows since 1997. Speak to our team if you need help choosing the right window for your home.
